Toslon X-Boat 730 XR500 Bait Boat

Toslon X-Boat 730 XR500 Bait Boat

As a result of strong demand from our customers all over Europe, we now present the X-Boat 730, our flagship bait boat model, equipped as standard with our XR500 remote control and ready to use.

Discover the ultimate bait boat experience!

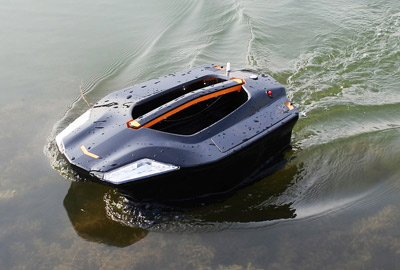

Toslon X-Boat 730 Bait Boat

XBOAT is a smart remote control bait boat, which is generally used to help fisherman transporting baits to a target position on water. The streamline concept of Xboat shape design was from supercar and yacht. It integrated the handle into the body, which make it more fashionable and professional.

Xboat uses an industrial motor and DSS (double sealing system) water proof technique, which guarantee no water leaking even being used under bad water condition. And by using together with built-in GPS sonar fishfinder, Xboat can detect fishing condition in water area more than 500m away from the river bank.

The fishing condition includes water depth, water temperature, fish location, bottom condition, etc. And with GPS function, it can guarantee the user transporting baits to the same position every time. Which is very important during fishing. Moreover, the most attractive design for the Xboat is the controlling system. It integrated all electronic system into 2 boxes, ESC box and CCU box, which make it more stable and very easy for maintain.

What comes with every boat ordered:

• FlySky 2.4 Ghz 6 Channel Remote Control  (Optional Futaba T6K)
• 2 Li-Ion batteries x 12.000mAh / 12v - Enough power for 5 hours working time at max speed
• 1 Li-Ion Charger
• Well Padded bag for all bait boat acessories
• Well Padded Bag for X- Boat
• 2 Years International Warranty

• 2.4 GHz 6-channel remote control
• Up to 5kg bait capacity / Volume total 5 Liter ( 2.5 liters per hopper )
• Standard 2 Li-ion battery (12000 mah /12v) provide more than 4.5hours running time at max speed
• R/C Range 500m to 1000m, depending upon environmental conditions
• Special weeds protection
• Failsafe-system as standard
• Two separately controllable hopper releaseing
• Non-wearing and easy-to-use magnetic pin hook releasing system
• High performance industrial engines
• SONAR/GPS/Autopilot pre-designed. Easy Plug and Play without demaging the body
• State of the art electronic control system provide top reliability even under the toughest conditions
• Special handle design with rubber protection providing comforatble grabing
• Unique shape design make the boat apperance attractive and remarkable

Dimensions : 70 cm x 44 cm x 27 cm - Poids 7 kg

High reliability

The innovative DSS (double seal system) technology, instead of single oil sealing, provides the most safe shaft sealing.

Heavy load hopper system use unique Sensor-less position control technique, always open close to correction position during all lifetime of the boat. The two specially designed hopper were made with 0.8mm stainless plate, provide a 32kg*cm torque

Smart Front Light

The 2 front light were designed with 2*30pcs small white LED and 2*1.5w high brightness LED ( switchable via the remote control independently). The dazzling light can clearly guide you the direction of boat no matter using day or night.

The brightness is adjustable via the remote control.

Water Switch

X-boat will power on automatically in 30s after putting it on water. And power off automatically after it was taken from water. Which prevent you losing your boat when you forgot powering on after putting it on water.

Battery security

The tail light will start blinking slowly if the battery energy is lower than 30%. The lower the battery energy is, the faster the tail light blink.

Supplied with a protection bag

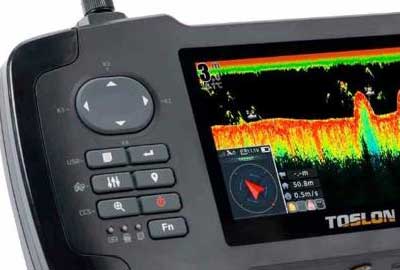

Toslon XR500 Echo GPS Autopilote Universal Remote Control

The Toslon XR500 is an all-in-one system for most bait-boat.

A very high-end complete product including the XR500 remote control, high definition echo sounder, autopilot GPS with integrated chart plotter. The best system to transform your bait boat into a complete boat capable of facing any situation, bringing the best of available technology.

– Support up to 8 channels of remote control

– Autopilot system with the 10th generation high accuracy GNSS receiver

– Advanced echo sounder with HD image, 8 Color Palette for daytime & dark night fishing

– Route plotter with depth information, the route can be reload as 2D map

– Compasses at boat & handheld side, the boat heading is also given when in stationary state

– 5 favorite spots can be defined out of 100 save waypoints

– Quiet arrive feature to eliminate the noise when boat approaching the spot

– CCS mode to free your hand, one button to active cruise control system, boat always run in straight line

– SD card storage support import/export settings, waypoints, and software upgrade.

– *.tslw log file support, can record all sonar & GPS info to SD card

– Google kml file support

– High reliability, standard 8 channels remote, support MIXER

– Start cruise control by one click on joystick

– Autopilot mode, allow [arrive actions] and [auto back-home] – [Quiet-reach] mode enable the boat run with lower speed when approaching the target

– Pick a point on the map and start autopilot at anytime

– 6 buttons can be mapped to any channels of the remote control, easy to use.

Handheld Device  TFT Color Screen  5 inch, HD 800*480pixels

Main user Interface  3 different style

User Defined Button  6 buttons linked to receiver

Power   type-C input, DC5V 3A

Battery  3pcs 18650 (Optional)

Built-in Li-ion Charger  Yes

Battery life  8 hours

AC-DC power supply  Optional

Water Proof  Splashproof

Radio frequency  2.4GHz FHSS

Radio Range  300-500m（Depends on usage environment）

Case size  268*120*42mm

BCS-BOX  Signal Interface  PWM,PPM,Uart(optional)

Channels of Receiver  8

GNSS/Compass Port  RS232, 19200bps

Fail-safe  YES (automatically return to HOME point after signal lost lasting 20s)

Power Input  DC 3.5/1.35mm  DC6~16V/200mA

Echo Sounder  Max. Depth  40m

Sonar coverage  60 degree

Ping Rate  6Hz

Sonar Software Engine  Gen3

Hardware Gain Adjustable  Yes

User Defined Color Scheme Support  Yes

Color Route to Indicate Depth(2D Map)  Yes

tslw logger for SonarViewer  N/A

Power Input  DC 5.5/2.1mm  DC9~16V/200mA

Navigate Sensor  GPS Accuracy(CEP)  1.5m(SBS or QZSS) / 2.5m

Compass at Boat Side  Yes

Compass at Dispaly Side  Yes

Autopilot  Two propellers boat support  Yes

propeller & Rudder boat support  Yes

Steering Sensitivity Adjustable  Yes

Push-Go Key(shortcut)  Yes

Pick up waypoint form map  Yes

High speed boat support  1~5m/S

Cruise Control System  Yes

Quiet Reach Mode  Yes， lower speed when approach the target

Favourite Points ShortCut  5 favourite waypoints shortcut

Arrive Actions  Yes, open bait-boxes, release hook as config

Waypoint Number  100 with depth & time info

High definition screen

Integrated autopilot

Tripod mounting screw integrated

Click here to download the user manual
