Anatec Monocoque S Oak Lithium Brushless ALF500 B + Gift

Anatec Monocoque S Oak Lithium Brushless ALF500

Anatec Monocoque S Camou Oak Lithium Brushless DE-SR07 Bait Boat

The MONO is the best-seller of the ANATEC range!

An ideal compromise for fishing in the best possible conditions. Its small size makes it easy to launch even on rough terrain.

This new version is equipped with new electronic components, including a Lithium battery and now has a high-end brushless motor. Thanks to these new features, the result is

• A better range compared to the lead battery version
• A lighter boat (due to the lithium battery)
• A faster boat on the water thanks to its new Brushless motor
• No more mechanical maintenance (no more grease to put regularly on the motor shaft)

The MONO respects the quality and reliability charter common to all the boats in the range. Moreover, driving it and learning its various functions are very easy and accessible even to beginners.

It also benefits from a very good buoyancy and can be used even when the water surface is rough.

The MONO is powered by a Brushless propeller motor and a 7.4V/12Ah Lithium battery. The autonomy of use of the boat is about 90/120 min and its maximum speed is 1.3 m / second.

Compared to the previous version, this version has a digital voltage monitor to instantly check the battery voltage.

Steering is provided by a rudder mechanism. The MONO's priming tray is located in the rear position and has a capacity of 1 kg. This container allows the transport of the baits and the line.

To make it easier to spot the boat on the water at night or in dark weather, the MONOCOQUE is equipped with 4 ultra-powerful light diodes (2 white at the front and 2 red at the back).

For a detailed description of how to use the MONO, the instructions for use and the conditions/precautions for use, please refer to the user manual enclosed with the boat.

Dimensions: 75cm x 35cm x 36cm - Weight: 5.8kg (including battery)

Remote control DEVICT DE-SR07

This new Mono S is delivered with the DEVICT DE-SR07 remote control which benefits from the 2.4 GHz technology. This new remote control is powered by a rechargeable lithium battery with micro USB connection.

Also, when several users are in range, it is no longer necessary to change the quartz to set the radio frequencies. The allocation of the different channels is done automatically.

Finally, this new technology no longer requires an antenna on the boat, which makes it much easier to reach under low branches.

With the new remote controls, the transmission range can be up to 300m, so there is no risk of losing control.

For protection, the remote control comes with a transparent plastic cover that allows it to be used in the rain. It is important never to use the remote control in the rain without this protection.

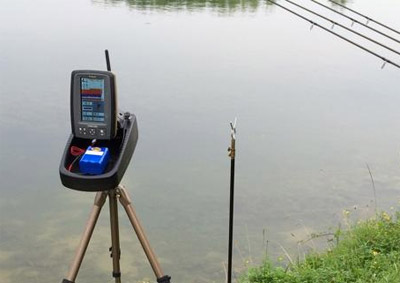

Anatec ALF500 Bait Boat Echosounder Colour with Probe

The ALF500 is a wireless transmission echo sounder that can be used on all ANATEC bait boats.

If you have chosen a boat model equipped with an ALF500 echo sounder, the manual (supplied with the echo sounder) will familiarize you with the various functions.

If you have chosen an unequipped boat version, note that it is possible to mount easily the sonar on your boat yourself with the kit including the necessary parts for assembly.

The sonar elements are as follows:

• An autonomous receiver (screen) with antenna
• An electronic transmission box (transmitter)
• A power switch to enable or disable the sounder
• A power supply
• An emitting antenna (on the boat)
• A probe with seal and tightening nut
• An orange rubber probe adapter (for Catamaran and Maxboat only)
• Velcro to fix the transmitter on some boats
• An antenna extension (for Pacboat and Maxboat only)

Technical characteristics of the ALF500 sounder :

• Total screen size: 153mm x 110mm x 44mm
• 4.3 '' LCD screen size : 97mm x 57mm
• Screen definition: 480 pixels x 272 pixels
• Operating range up to 30 meters deep
• Max transmission distance : 300 meters
• Operating range temperature: -10° C to +50° C
• Angle of probe : 60°

• 1) Power / Exit Button
• 2) Enter key
• 3) Menu key
• 4) Navigation keys in the menu
• 5) Depth indication
• 6) Temperature indication
• 7) Strength of the reception signal
• 8) Fish icon
• 9) Indication of depth of echo
• 10) Background
• 11) Depth Scale
• 12) Battery level
• 13) Removable antenna
