Anatec Monocoque 3B OAK Lithium Brushless DE-SR07 Echo TF520 + Gift
Rate: 3.9 - 9 votes
See reviews
231€72
This product is part of the following categories:

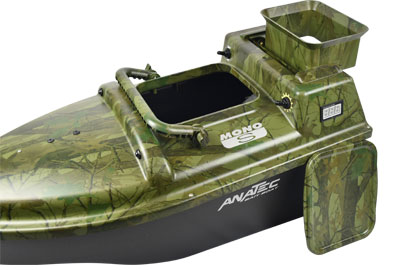

Anatec Monocoque 3B OAK Lithium Brushless DE-SR07 Echo TF520
Anatec Monocoque 3B OAK Lithium Brushless DE-SR07
The MONOCOQUE is the best-seller in the ANATEC range. An ideal compromise for fishing in the best possible conditions. Its compact size makes it easy to launch, even on uneven ground.
This new version is equipped with new electronic components, including a new DE-SR07 remote control, a lithium battery and a top-of-the-range brushless motor. Thanks to these new features, the result is :
Greater range than the lead battery version
A lighter boat (due to the lithium battery)
A faster boat on the water thanks to its new Brushless motor
No more mechanical maintenance (no need to grease the motor shaft regularly)
Non-contractual photo, corresponds to a different colour
The MONOCOQUE complies with the quality and reliability charter common to all the boats in the range. What's more, it's easy to handle and easy to learn, even for beginners.
It also boasts excellent buoyancy and can be used even when the water surface is rough.
The MONOCOQUE runs on a brushless propeller motor powered by a 7.4V/12Ah lithium battery. The boat has a range of around 90 minutes and a maximum speed of 1.3 m/sec.
Compared with the previous version, this version has a digital voltage monitor to check the battery voltage instantly.
Steering is provided by a rudder mechanism. The MONOCOQUE's rear-mounted priming tray has a capacity of 1 kg. This tray can be used to transport both the bait and the line.
To make it easier to spot the boat on the water at night or in dark conditions, the MONOCOQUE is fitted with 4 ultra-powerful LED lights (2 white at the bow and 2 red at the stern).
Non-contractual photo, corresponds to a different colour
Steering is provided by a rudder mechanism.
The 3B version, i.e. 3 tanks, of this boat multiplies the baiting capacity by 3!
Located at the stern and on the sides, the 3B Monohull's bait boxes have a capacity of 1kg each. These trays can be used to transport both the primers and the line.
Non-contractual photo, corresponds to a different colour
For a detailed description of how to use the MONOCOQUE, please refer to the instruction manual supplied with the boat.
Supplied complete with:
- 1 Lithium battery
- 1 can of grease
- Charger supplied
- 3 priming trays
- Carry bag
- Dimensions: 75cm x 35cm x 36cm - Weight: 6kg
Non-contractual photo, corresponds to a different colour
Non-contractual photo, corresponds to a different colour
Photo non contractual, corresponds to a different colour
Details protection for propeller
Additional priming trays
Handset DEVICT DE-SR07
This new DL Catamaran comes with the DEVICT DE-SR07 remote control which boasts 2.4 GHz technology.
This new radio remote control is powered by a rechargeable lithium battery with a micro USB connection.
Also, when multiple users are in range, it is no longer necessary to make a change of quartz to adjust the radio frequencies, the allocation of different channels is done automatically.
Finally, this new technology no longer requires an antenna on the boat, which greatly facilitates access under the lower branches.
Thanks to these new remote controls, the range of transmission can go up to 300m, which makes it possible to exclude any risk of loss of control.
For its protection, the remote control is accompanied by a transparent plastic cover that allows its use in case of rain. It is important to never use the remote in the rain without this protection.
- Range: 300m (variable depending on the environment)
- Depth capability: 30m (100ft)
- Wireless digital echo sounder
- Radio frequency: 2.4GHz
- RF chain: 20
- RC power: 20dBm
- Sonar frequency: 115kHz
- Sonar Beam Angle: 60 degrees @-10db
- Display size: 4.3" TFT LCD Sunlight Viewable
- Resolution: 480 x 272 pixels - 65,536 color
- DC 9~15V / 3S lithium battery
- Battery: x8 AA
- Multi-language menu (including French)
- Operating temperature: -10°C and +50°C
- Sensor Cable Length: 50cm
- IPX6 Level Waterproof Casing Design
- Water Temp. Included in Transducer
- Frequency-hopping spread spectrum (FHSS)
- Direct-sequence spread spectrum (DSSS)
- Hardware gain adjustable
- Built in 3S lithium battery charging function
- Stable wireless performance even in bad condition
- Full two-year warranty; extended warranties available
- Monitor and Display Real-time Voltage of Bait boat Battery
- Sonar Alarms: Fish / Shallow / Low Battery
- Real-time display (no time lag between what the echo picks up and what is displayed on the screen)
- Color Line technology allows for easy reading of fish and bottom structure (easily identifiable bottom hardness)
- Depth is indicated above each fish symbol
- Sonar alarm: fish, high bottom and low battery (boat battery and echo sounder battery)
- Depth sounder battery level and boat battery level display
- Easy to store with a foldable display in the housing
- Memory system to retain previously saved settings
- Freshwater/saltwater compatible
- 2 year warranty
- Switch for transmitter not included
Toslon 2200mAh 3S Internal Battery for Echosounder
This 11.1V Lithium-Ion battery has been specially developed to power the Toslon and Anatec echo sounder display cases.
This "internal" version of 2200mAh comes to be placed in the compartment located at the back of the screen and the supplied mains charger will allow you to recharge it via the socket present on the case of the echo sounder.
It is compatible with the following echo sounders: Anatec ALF500, Toslon TF520, TF520, TF640, TF650 and TF740
Product presentation
| Quantity | Ref | Name |  + |
|---|---|---|---|
| 1 x | 213577 | Anatec Monocoque 3B OAK Lithium Brushless DE-SR07 | |
| 1 x | 213604 | Toslon TF520 Fish Finder with Transducer | |
| 1 x | 213522 | Toslon 2200mAh 3S Internal Battery for Echosounder | |
