Anatec Catamaran IVY AN-i6x Echo TF740 + Gift
Rate: 4.8 - 6 votes
See reviews
517€52
This product is part of the following categories:
Anatec Catamaran IVY AN-i6x Echo TF740
Anatec Catamaran IVY AN-i6x Bait Boat
ORIGINAL ANATEC WARRANTY |
ChronoCarpe, Official ANATEC Seller. 2 Years Warranty parts & labor |
The catamaran is the ultimate bowsprit, its typical shape ensuring perfect buoyancy and unfailing stability even in the most extreme conditions (wind and waves).
Located on each side of the hull, two ventilated motors provide the power needed to sail at more than 5 km/h under full load. The motors are controlled independently of each other, allowing the boat to be steered.
This feature ensures perfect manoeuvrability of the catamaran and gives it the ability to turn on the spot. This is a major advantage when the lines need to be laid with great precision (along edges or under foliage).
The catamaran is fitted with a handle for easy transport and launching.
Non-contractual image, illustration in another colour
The stainless steel priming tank is positioned centrally, giving the boat excellent stability even when loaded. It is divided into 2 compartments.
The remote control allows the hatches to be opened progressively, so that the fishing area can be sprayed. The 2 hatches can be opened independently for precise, targeted baiting.
The box can hold up to 5kg (2 x 2.5kg) and can be used to carry any type of groundbait (boilies, seeds, pellets, flours).
When it comes to depositing the lines, the assembly fits easily and reliably into the hatch. Laying is very precise and the rig is always fishable.
Non-contractual image, illustration in a different colour
For use at night or in bad weather, the catamaran is fitted with 6 ultra-powerful white LEDs at the bow and 2 red LEDs at the stern, so you can spot the boat's position even from a great distance.
For the outward and return journeys, the brightness of the LEDs gives you the direction. If the boat veers off course, the intensity of the LEDs decreases because you can no longer see them from the front.
In terms of autonomy, all the catamaran models are fitted with 2 lead-acid 6V/12A batteries, giving them a range of 90 minutes.
A digital battery charge indicator is located on the side of the boat. Information is given in Volt. If the indicator shows 6V, the batteries need to be recharged.
Main specifications:
- Dimensions: 85cm x 50cm x 25cm
- Charging capacity: 5kg
- Weight without batteries: 11kg
- Supplied complete with carry bag
Non-contractual image, illustration of another colour
- 1: Carrying handle
- 2: Removable cover
- 3: Hood fastener: Allows the bonnet to be held in place or removed in order to work on the ignitor's internal components
- 4: Front position LEDs: 6 white LEDs for viewing the boat at night or from a long distance
- 5: Rear position LED: 2 red LEDs for night-time or long-distance viewing of the boat
- 6: Location for echo sounder ON/OFF switch (sold separately)
- 7: Location for echo sounder antenna (sold separately)
- 8: Digital voltage controller

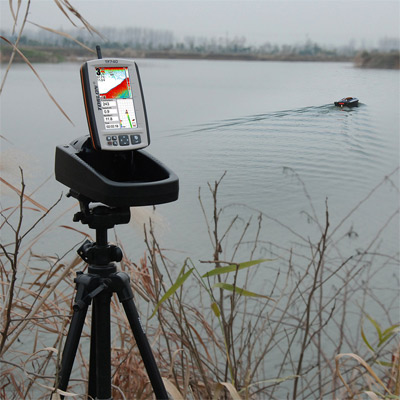

Toslon TF740 Color Sonar + GPS + Autopilot
The TF740 is specially designed for bait boats. It integrates wireless fish finder, high precision compass, GPS and autopilot system. The advanced sonar features show you a detailed bottom structure and fish signals.
The autopilot system accurately navigates the boat to a saved target. It's a true autonomous driving system, which can help anglers use their boats under harsh conditions, such as in the dark or in heavy fog.
The TF740 supports *.kml files (which can be edited via Google Earth), then set it as the outline of the lake. It helps the angler to precisely select a point and then simply activates the autopilot mode via the [PUSH-GO] button.
The TF740 is not only a fish finder, but also an unmanned operating system for bait boats that ensures you have a happy time of fishing.
GPS and Compass :
- GPS data display Distance to target, Distance to Home,Speed of boat,Time to Board,Satellite Number,Heading,Bear, Course Memory,Time of day,Main Battery.
- Compass indicatior of the instant boat heading direction on screen (a red "+" on screen indicate the target)
- Indicator of the position and distance to target waypoint and HOME
- Boat arriving alarm
- Singal lost alarming
- Indication of satallite condition by color bar: red(0~3satallites); Yellow(3~6); Blue(＞6)
- Show the current position as latitude/longitude in decimal degrees
- 20 RF channels allow different users operationg at same region without interference
- Detailed waypoint information including icon, name, date, etc,
- Zoom in/Out route display
Sonar :
- Adopt brand new digital wireless sonar system
- Real time sonar windows display the latest sonar returns
- Color Line separates fish and structure from the bottom, and defines bottom hardness.
- Display target depth reading above each fish symbol as a guide for quick and precise lure presentations.
- Sonar alarm: fish / shallow / low battery(boat battery and display battery)
- Built-in temp sensor in transducer
Autopilot :
- You can select target from saved waypoint
- Or import KML and select waypoint from the map
- "Push-Go" shortcut can start the autopilot quickly
- Effective system for 1 and 2-engine boats
- Steering sensitivity adjustable
- Wiring test mode
Technicals informations :
BASIC | TFT Color Screen | 5" |
Power | DC 9~15V | |
Battery 2200mAh 3S | Not included | |
Built-in Li-ion Charger | Yes | |
AC-DC power supply | Optional | |
Water Proof | Splashproof | |
Echo Sounder | Max. Depth | 40m |
Sonar coverage | 60 degree | |
Ping Rate | 6Hz | |
Sonar Software Engine | Gen3 | |
Hardware Gain Adjustable | Yes | |
User Defined Color Scheme Support | Yes | |
Color Route to Indicate Depth(2D Map) | Yes | |
tsl2 logger for SonarViewer | N/A | |
Radio System | Radio Frequency | 2.4GHz |
Radio Power(Max) | 20dBm | |
Frequency-hopping spread spectrum (FHSS) | Yes | |
Direct-sequence spread spectrum (DSSS) | Yes | |
Max Range | 300m | |
GPS & Compass | GPS Accuracy(CEP) | 2.5m |
Compass at Boat Side | Yes | |
Compass at Dispaly Side | Yes | |
Waypoint Number | 500 | |
Routes to be Saved | 10 | |
Autopilot | Two propellers boat support | Yes |
propeller & Rudder boat support | Yes | |
Steering Sensitivity Adjustable | Yes | |
Wiring Test Mode | Yes | |
Push-Go Key(shortcut) | Yes | |
Pick up waypoint form map | Yes | |
Google kml import to Define Lake Boundary | Yes |
Product presentation
Product presentation
| Quantity | Ref | Name |  + |
|---|---|---|---|
| 1 x | 213578 | Anatec Catamaran IVY AN-i6x Bait Boat | |
| 1 x | 213517 | Toslon TF740 Color Sonar + GPS + Autopilot | |
