Anatec Catamaran IVY AN-i6x Echo ALF500 + Gift

The catamaran is the ultimate bowsprit, its typical shape ensuring perfect buoyancy and unfailing stability even in the most extreme conditions (wind and waves).

Located on each side of the hull, two ventilated motors provide the power needed to sail at more than 5 km/h under full load. The motors are controlled independently of each other, allowing the boat to be steered.

This feature ensures perfect manoeuvrability of the catamaran and gives it the ability to turn on the spot. This is a major advantage when the lines need to be laid with great precision (along edges or under foliage).

The catamaran is fitted with a handle for easy transport and launching.

Non-contractual image, illustration in another colour

The stainless steel priming tank is positioned centrally, giving the boat excellent stability even when loaded. It is divided into 2 compartments.

The remote control allows the hatches to be opened progressively, so that the fishing area can be sprayed. The 2 hatches can be opened independently for precise, targeted baiting.

The box can hold up to 5kg (2 x 2.5kg) and can be used to carry any type of groundbait (boilies, seeds, pellets, flours).

When it comes to depositing the lines, the assembly fits easily and reliably into the hatch. Laying is very precise and the rig is always fishable.

Non-contractual image, illustration in a different colour

For use at night or in bad weather, the catamaran is fitted with 6 ultra-powerful white LEDs at the bow and 2 red LEDs at the stern, so you can spot the boat's position even from a great distance.

For the outward and return journeys, the brightness of the LEDs gives you the direction. If the boat veers off course, the intensity of the LEDs decreases because you can no longer see them from the front.

In terms of autonomy, all the catamaran models are fitted with 2 lead-acid 6V/12A batteries, giving them a range of 90 minutes.

A digital battery charge indicator is located on the side of the boat. Information is given in Volt. If the indicator shows 6V, the batteries need to be recharged.

Main specifications:

• Dimensions: 85cm x 50cm x 25cm
• Charging capacity: 5kg
• Weight without batteries: 11kg
• Supplied complete with carry bag

Non-contractual image, illustration of another colour

• 1: Carrying handle
• 2: Removable cover
• 3: Hood fastener: Allows the bonnet to be held in place or removed in order to work on the ignitor's internal components
• 4: Front position LEDs: 6 white LEDs for viewing the boat at night or from a long distance
• 5: Rear position LED: 2 red LEDs for night-time or long-distance viewing of the boat
• 6: Location for echo sounder ON/OFF switch (sold separately)
• 7: Location for echo sounder antenna (sold separately)
• 8: Digital voltage controller

Handset AN-i6X remote control

This ANATEC AN-i6X radio control was co-developed with the manufacturer FLYSKY, the reference on the model radio control market. This 6-way radio control offers exceptional value for money and is very easy to use.

The AN-i6X transmitter and AN-i6X receiver constitute a 6-channel 2.4GHz AFHDS 2A digital proportional computerized R/C system. (Upgradable up to 10 channels)

AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and patented by FLYSKY. Providing superior protection against interference while maintaining low power consumption and reliable high reception sensitivity, FLYSKY's AFHDS technology is considered one of the leaders in the RC market today.

Omnidirectional gain antenna

The high-efficiency, high-gain omnidirectional antenna reduces interference, while using less power and maintaining a strong, reliable connection.

Two-way communication

Capable of sending and receiving data, each transmitter is capable of receiving temperature, altitude and many other sensor types, servo calibration and i-BUS support.

Low energy consumption

The system is built using highly sensitive, low-power components, maintaining high receiver sensitivity, while consuming as little as one-tenth the power of a standard FM system, greatly extending the operating time. battery life.

Unique identity recognition system

Each transmitter and receiver has its own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems from accidentally connecting or interfering with the systems operation.

Multi-channel hopping frequency

The bandwidth of this system ranges from 2.408 GHz to 2.475 GHz. This band is divided into 135 channels. Each transmitter jumps between 16 channels to reduce interference from other transmitters.



Anatec ALF500 Bait Boat Fishfinder Colour with Probe

The ALF500 is a wireless transmission echo sounder that can be used on all ANATEC bait boats.

If you have chosen a boat model equipped with an ALF500 echo sounder, the manual (supplied with the echo sounder) will familiarize you with the various functions.

If you have chosen an unequipped boat version, note that it is possible to mount easily the sonar on your boat yourself with the kit including the necessary parts for assembly.

The sonar elements are as follows:

• An autonomous receiver (screen) with antenna.
• An electronic transmission box (transmitter).
• A power switch to enable or disable the sounder.
• A power supply
• An emitting antenna (on the boat).
• A probe with seal and tightening nut.
• An orange rubber probe adapter (for Catamaran and Maxboat only).
• Velcro to fix the transmitter on some boats.
• An antenna extension (for Pacboat and Maxboat only)

Technical characteristics of the ALF500 sounder:

• Total screen size: 153 X 110 X 44 mm
• 4.3 '' LCD screen size: 97 X 57 mm
• Screen definition: 480 X 272 pixels
• Operating range up to 30 meters deep
• Max transmission distance: 300 meters
• Operating range temperature: -10 ° C to + 50 ° C
• Angle of probe: 60 °

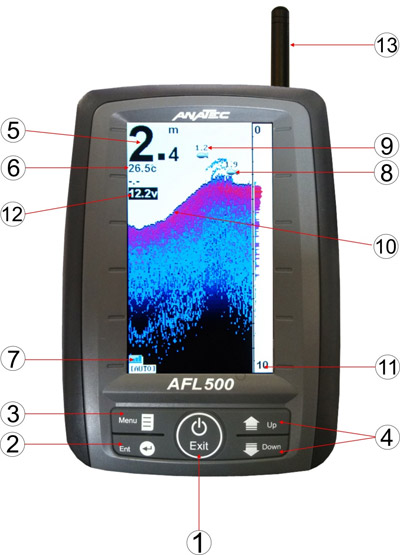

• 1) Power / Exit Button
• 2) Enter key
• 3) Menu key
• 4) Navigation keys in the menu
• 5) Depth indication
• 6) Temperature indication
• 7) Strength of the reception signal
• 8) Fish icon
• 9) Indication of depth of echo
• 10) Background
• 11) Depth Scale
• 12) Battery level
• 13) Removable antenna

Click here to download the user manual
